5 Years Warranty Deep Cycle Li-Ion 12v 100ah 150ah Solar Lithium Lifepo4 Battery Pack For Storage Energy
Description:
Safety and economical
Each battery has built in BMS protection board from Over-discharge, Over-charge, Short Circuit etc….
LiFePO4 battery is Environmentally friendly, which will not destroy the ecological environment, also have no memory effects.
Excellent discharge characteristics
Have low internal resistance and high flat voltage characteristics during strong current discharge, which ensures a wider application field.
Long cycle life
Provide long storage life with few limiting conditions. It offers problem-free charge after long storage, permitting to use in a wide range of applications.
Friendly to the environment:No Cadmium, Mercury effect, Lead
No memory effect
Small size,light Weight.
Low internal resistance

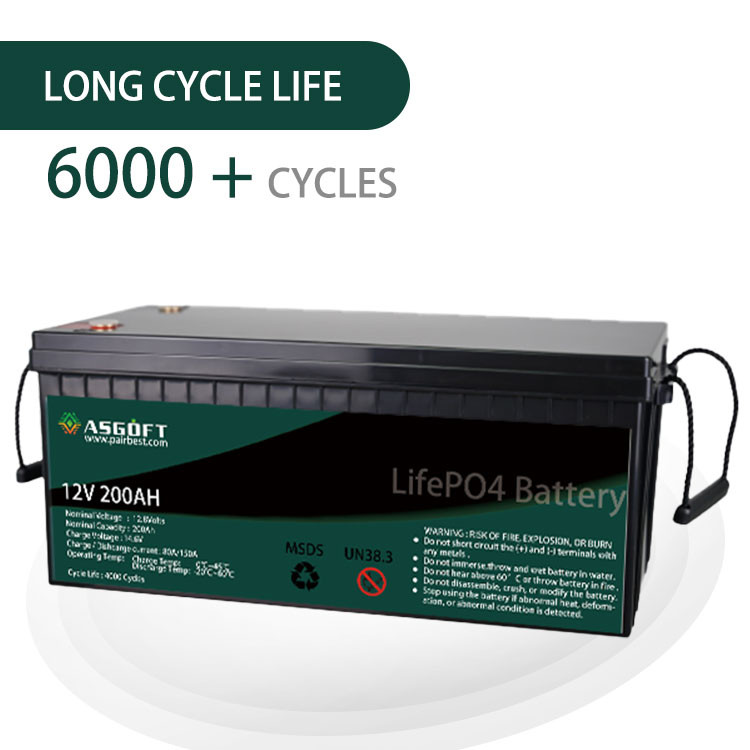

Long cycle life: >6000times(10 times of Lead Acid batteries)
Low self-discharge character
Features :
Specifications:
| Nominal Voltage | 12.8V |
| Rated Capacity | 200AH @0.2C to 9.6V |
| Stored energy | 2560Wh |
| Cycle life@100%DOD | 2000 Cycles Approx. |
| Weight | 21 kg |
| Internal Resistance | ≤25.0 mΩ |
| Max. Charge Current | 100 A |
| Max. Discharge Current | 150 A |
| Charge Cut-off Voltage | 15.2V |
| Discharge Cut-Off Voltage | 9.6V |
| Dimensions | L490mm×W170mm×H242mm |

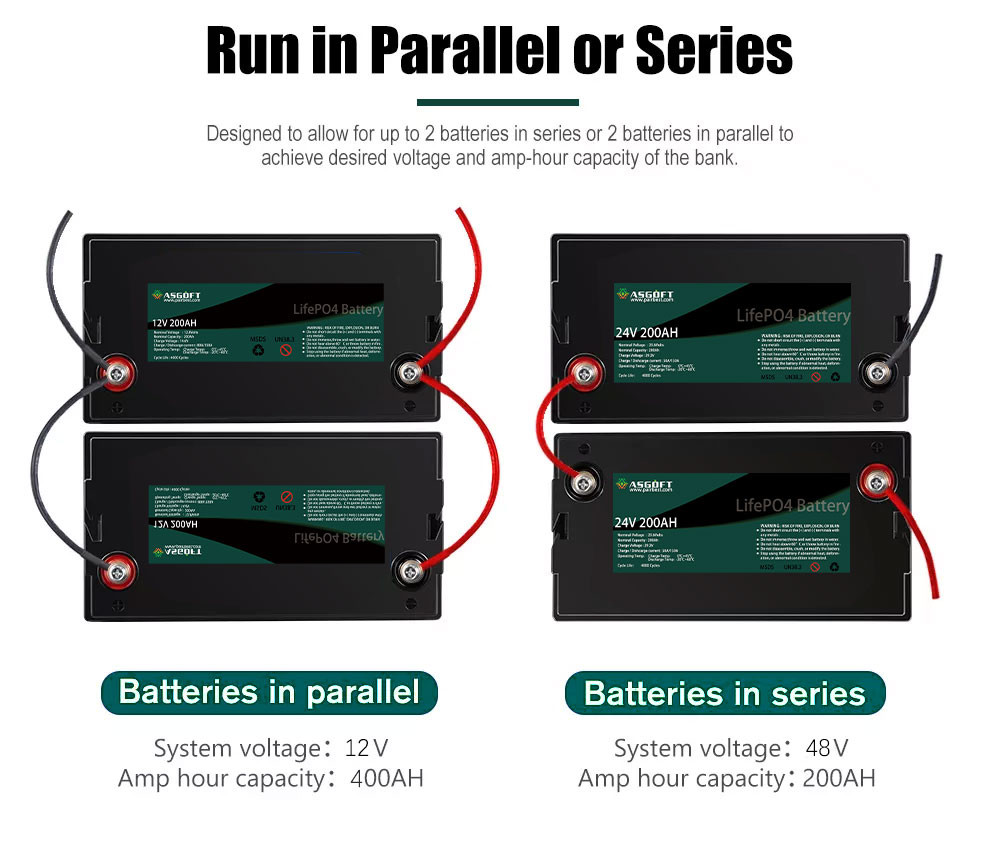

| Series & Parallel Connection | Up to 4 batteries |
| Operating Temperature Range | 32°F (0°C) to 113°F (45°C) |
| Charge | 14°F (-10°C) to 140°F (60°C) |
| Discharge | 59°F (15°C) to 95°F (35°C) |
| Recommended | |
| Self-Discharge Rate | ≤3%/month |
| Life Expectancy (years) | 5 years at one cycle per day |
| Self Discharge | Approx. 2% per month @ 20°C |
| Long Term Storage | Charge every 6 months |
| Short Circuit Protection | Automatically recover after removal of short |
| Terminal Type | Female Copper Insert M8 (M8/mm) |
Product Details :
