15kwh 20kwh lithium ion batteries 30kwh 40kw Home Solar power station system Portable generation 40kwh battery cases
Description:
01. High Voltage and Low Losses:
Small high-voltage electricity ranging from 120V to 467.2V reduces current and improves conversion efficiency.
02. Flexible Capacity Options:
Capacity requirements can be flexibly combined, ranging from 15kWh to 40kWh.

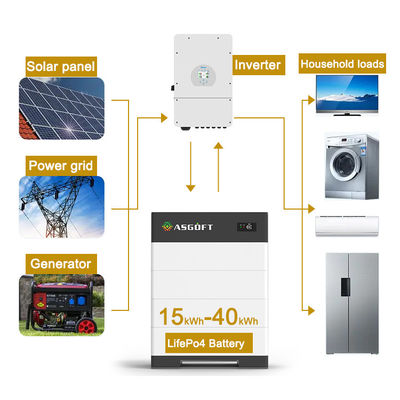

03. Wide Compatibility with Inverters:
Compatible with most mainstream inverter brands.
04. 98% Efficiency:
Intelligent master-slave architecture BMS management system reduces equipment no-load losses, and the actual efficiency reaches over 98%.
05. Compact and Exquisite Appearance:
20% reduction in volume compared to similar products.
06. Simple Installation:
Wireless connection between modules and high-voltage boxes eliminates the need for complex wiring.
07. 7000 Cycle Life:
Uses EVE grade A cells, with a cycle life of over 7000 times at 75% DOD and over 5000 times at 80% DOD.
Features :
Specifications:
| Nominal Voltage | 153.6V 204.8V 256V 307.2V 358.4V 409.6V |
| Nominal capacity | 100AH |
| Nominal energy | 15kWh 20kWh 25kWh 30kWh 35kWh 40kWh |
| Dimension(L*W*H, MM) |
610*386*650 mm 610*386*795 mm 610*386*940 mm 610*386*1085 mm 610*386*1230 mm 610*386*1375 mm |
| Battery Cell specifications: | EVE lithium iron phosphate battery |
| Max charging Current | 50A |
| Max Discharging Current | 60A |
| Internal resistance | ≤40 mΩ |
| Operating temperature(charge) | -22°C ~ 55°C |
| Storage temperature | -20°C ~ 25°C |
| Cell overcharge Protection |
Overcharge detection voltage
overcharge detection delay time
Overcharge release voltage
|
| Cell over-discharge Protection | Yes |
| Over-current Protection | Yes |
| Short Protection | Yes |
| Temperature Protection | Yes |
| Communication | CAN and RS485 |
| Cycle lfe | 8000 times(25°C@50%DOD,0.2C) |
| 6000 times(25°C@80%DOD,0.2C) | |
| 4000 times(25°C@100%DOD,1C) | |
| Life Span |
15-25 years Life span. Warranty: 5-10 years (Optional) |
Product Details :
