Micro Inverter Energy Storage Battery 1024wh 5120Wh Balcony Solar Portable power station 800W power station
Description:
The Balcony Solar Storage System is a compact energy storage solution specifically designed for balcony and terrace installations. It comprises solar photovoltaic panels, a micro-inverter, and intelligent lithium batteries.
Convenient Installation: Unlike traditional rooftop solar systems, the installation process for the balcony solar system is remarkably convenient and flexible, providing a plug-and-play solution.
Substantial Benefits: Photovoltaic systems generate electricity primarily during daylight hours, which may not always align with users' peak electricity demand. By incorporating energy storage, particularly with a balcony solar system, users can enjoy significant financial benefits due to price differentials and optimized energy utilization.
Features :
Operation Principle
Problem-Solving & Market Positioning
Specifications:
| Project Description | Technical specifications | Remarks | |
| Mainframe | Capacity | 1024 Wh | 16 cells / group* 20Ah*3.2V |
| Battery Type | EVE A+ Lifepo4 | ||
| Cycle Life | ≥4000 cycles | 1C/100%DOD | |
| Maximum Input Power | 1200 W | ||
| Maximum Output Power | 800 W | According to EU regulation | |
| Output Voltage Range | 16-60V | ||
| Maximum Number of Parallel Battery Packs | 5 | ||
| Maximum Expandable Capacity | 5120 Wh | ||
| Protection Level | IP67 | ||
| Charging Temperature | 0-45℃ | ||
| Protection |
Input Overvoltage, Undervoltage, Output Overvoltage, Undervoltage, OutputOvercurrent, Output Overload, Output High Temperature, Low Temperature
Protection
|
Support | |
| Others | WiFi Module | Support | |
| Communication | Support | ||
Product Details :

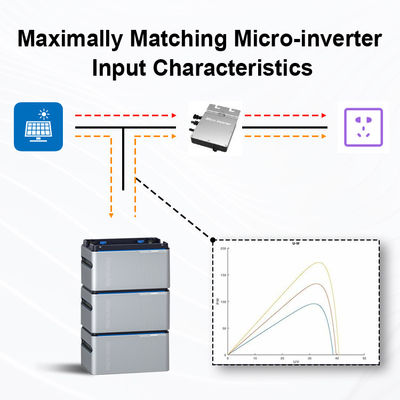

Unlike other energy storage lithium battery modules, this product employs analog tracking technology.Tailored for photovoltaic inverters or micro-inverter systems, it utilizes software-based simulation calculations to generate PV characteristic curves, effectively maximizing compatibility with the input characteristics of micro-inverters.
•
This product is compatible with 99% of micro-inverter systems, ensuring seamless matching without the need for communication. Power control is precisely managed.
