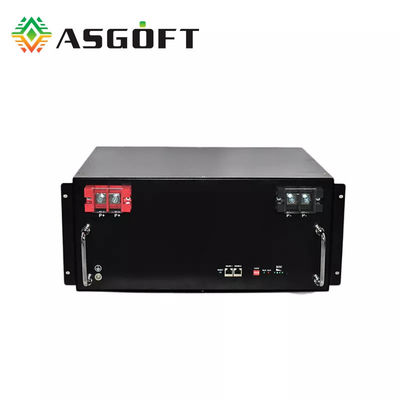

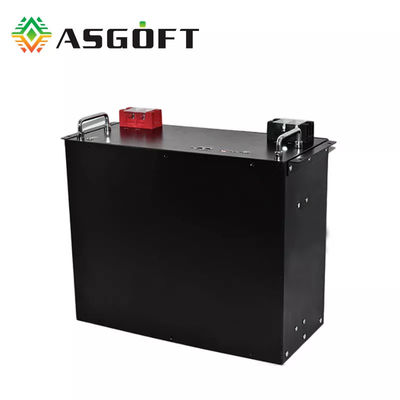

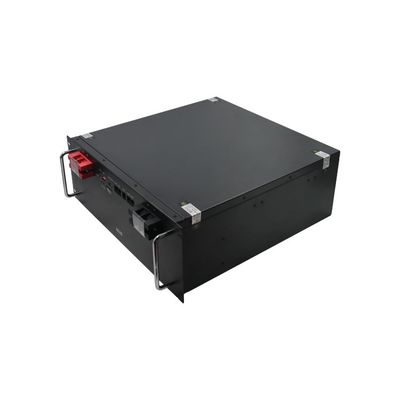

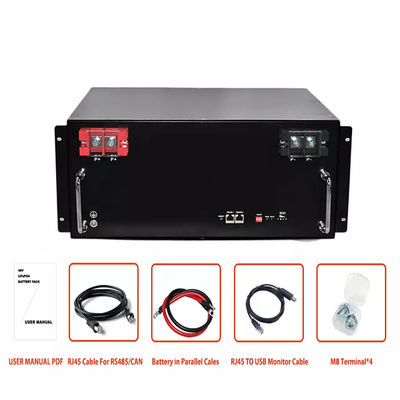

Solar Storage Grade A Prismatic Cell 48v 51.2v 100ah 200ah Lifepo4 Battery Pack
Description:
This is a modular LiFePO4 memory for the highest demands. Through its High cycle life, the memory is suitable ideal as a storage battery for photovoltaic systems, inverters or a self-sufficient Power supply.
Highest safety and a very long service life are thanks to high-quality LiFePO4 cells and state-of-the-art BMS technology is guaranteed even with regular deep discharge. The memory enables fast efficient charging and a very high discharge current.
The storage system is modular. Each module is a fully functional memory with a stand-alone integrated battery management system, BMS for short. It monitors constantly monitors the status of the cells and protects them from overcharging, overvoltage and overtemperature.
A defect of the storage tank due to environmental influences or incorrect use, is thus prevented in advance. By simply interconnecting multiple Memory modules, an increase in capacity is also possible afterwards without any problems.
Features :
Specifications:
| Model | ASB-48V200 |
| Nominal Voltage(V) | 48 |
| Nominal Capacity(AH) | 200 |
| Energy (Wh) | 9600 |
| Dimension(mm) | 482*500*280 |
| Weight(kg) | 82 |
| Cycle Life | 6000 Cycles |
| Working Temperature ℃ | -20~60 |
| Charging Temperature ℃ | 0℃～45℃ |
| Discharge Voltage (V) | 48 |
| Charge Voltage(V) | 58 |
| Charge (A) Discharge Current (A) |
50A |
| 200A | |
| Warranty | 5 years |
Product Details :
