Solar battery cases system 15kwh 20kwh 25kw 30kw 35kw 40kw stackable solar generator 100Ah lithium ion batteries stackable
Description:

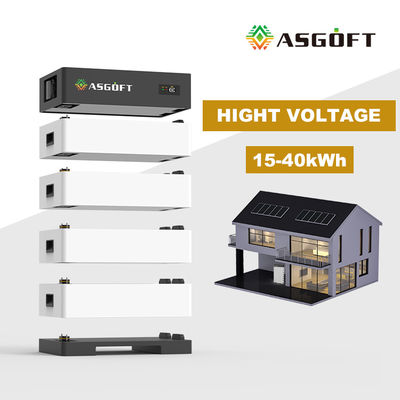

Introducing the stackable high-voltage residential energy storage system. With a capacity ranging from 15kWh to 40kWh, this system offers easy installation, eliminating the need for visible wiring connections and ensuring enhanced safety. Its compact design occupies approximately 20% less volume compared to similar products in the market. Leveraging high voltage, this system delivers higher efficiency compared to low-voltage alternatives. It finds wide applications in residential energy storage systems.
Expand your home energy possibilities with our high-voltage residential energy storage solution. Designed for seamless integration into your living space, this stackable system empowers you to unlock the full potential of energy management. With capacities ranging from 15kWh to 40kWh, it provides ample storage to meet your household's energy needs.
Installation is a breeze, as the system eliminates the hassle of visible wire connections, ensuring a clean and clutter-free environment. The advanced high-voltage technology not only improves efficiency but also maximizes energy utilization, allowing you to make the most of every watt.
Safety is our top priority. The system incorporates robust safeguards to protect your home and loved ones. Its high-voltage design minimizes energy losses during storage and discharge, resulting in a highly efficient energy management solution.
Not only does this system offer exceptional performance, but it also excels in space optimization. Its compact footprint takes up approximately 20% less volume compared to similar products, giving you more flexibility in choosing the installation location.
Experience the versatility of our high-voltage residential energy storage system. Whether you want to store excess solar energy, secure backup power during outages, or optimize your energy consumption, this solution provides the reliability and efficiency you need. Take control of your energy future with our cutting-edge technology, designed specifically for residential applications.
Features :
Specifications:
| Nominal Voltage | 153.6V 204.8V 256V 307.2V 358.4V 409.6V |
| Nominal capacity | 100AH |
| Nominal energy | 15kWh 20kWh 25kWh 30kWh 35kWh 40kWh |
| Dimension(L*W*H, MM) |
610*386*650 mm 610*386*795 mm 610*386*940 mm 610*386*1085 mm 610*386*1230 mm 610*386*1375 mm |
| Battery Cell specifications: | EVE lithium iron phosphate battery |
| Max charging Current | 50A |
| Max Discharging Current | 60A |
| Internal resistance | ≤40 mΩ |
| Operating temperature(charge) | -22°C ~ 55°C |
| Storage temperature | -20°C ~ 25°C |
| Cell overcharge Protection |
Overcharge detection voltage
overcharge detection delay time
Overcharge release voltage
|
| Cell over-discharge Protection | Yes |
| Over-current Protection | Yes |
| Short Protection | Yes |
| Temperature Protection | Yes |
| Communication | CAN and RS485 |
| Cycle lfe | 8000 times(25°C@50%DOD,0.2C) |
| 6000 times(25°C@80%DOD,0.2C) | |
| 4000 times(25°C@100%DOD,1C) | |
| Life Span |
15-25 years Life span. Warranty: 5-10 years (Optional) |
Product Details :
