High Voltage 100Ah solar generator 15kwh-40kw Stackable energy storage battery 100Ah home lithium ion batteries
Description:
Introducing our revolutionary high-voltage residential energy storage system, designed to revolutionize the way you manage and utilize energy in your home. With capacities ranging from 15kWh to 40kWh, this system empowers homeowners with a seamless and efficient energy storage solution.
Experience the ease and convenience of installation with our high-voltage system. Unlike traditional setups that require extensive wiring connections, our system eliminates the need for visible wires, providing a clean and aesthetically pleasing installation. Say goodbye to the clutter and hello to a sleek and modern energy storage solution.
Safety is our utmost priority. Our high-voltage system incorporates advanced safety features to ensure the well-being of your home and family. With enhanced protection mechanisms, you can enjoy peace of mind knowing that your energy storage system is reliable and secure.
Not only does our high-voltage system offer superior safety, but it also boasts remarkable efficiency. By leveraging high-voltage technology, our system achieves greater energy utilization, resulting in optimized energy management and reduced energy losses. This means you can make the most of every unit of energy stored and maximize the efficiency of your home energy system.
Space optimization is another key advantage of our high-voltage system. With its compact design, our system takes up considerably less space compared to similar products on the market. This allows for more flexibility in choosing the installation location, whether it's in your garage, utility room, or any other suitable space in your home.

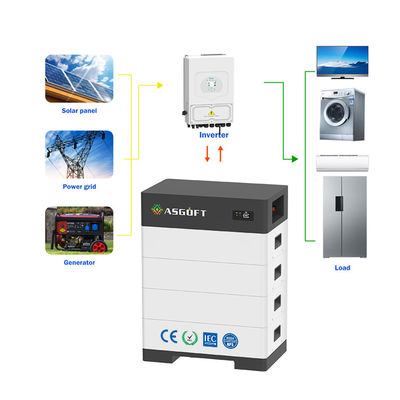

Imagine a home where excess solar energy can be efficiently stored and utilized when needed. Our high-voltage residential energy storage system makes this a reality. Whether you want to reduce your reliance on the grid, have a reliable backup power source during outages, or optimize your energy consumption, our system provides versatility and functionality to meet your needs.
Upgrade your home energy management with our cutting-edge high-voltage residential energy storage system. It's time to take control of your energy future and enjoy the benefits of efficient, reliable, and sustainable energy storage right at your fingertips.
Features :
Specifications:
| Nominal Voltage | 153.6V 204.8V 256V 307.2V 358.4V 409.6V |
| Nominal capacity | 100AH |
| Nominal energy | 15kWh 20kWh 25kWh 30kWh 35kWh 40kWh |
| Dimension(L*W*H, MM) |
610*386*650 mm 610*386*795 mm 610*386*940 mm 610*386*1085 mm 610*386*1230 mm 610*386*1375 mm |
| Battery Cell specifications: | EVE lithium iron phosphate battery |
| Max charging Current | 50A |
| Max Discharging Current | 60A |
| Internal resistance | ≤40 mΩ |
| Operating temperature(charge) | -22°C ~ 55°C |
| Storage temperature | -20°C ~ 25°C |
| Cell overcharge Protection |
Overcharge detection voltage
overcharge detection delay time
Overcharge release voltage
|
| Cell over-discharge Protection | Yes |
| Over-current Protection | Yes |
| Short Protection | Yes |
| Temperature Protection | Yes |
| Communication | CAN and RS485 |
| Cycle lfe | 8000 times(25°C@50%DOD,0.2C) |
| 6000 times(25°C@80%DOD,0.2C) | |
| 4000 times(25°C@100%DOD,1C) | |
| Life Span |
15-25 years Life span. Warranty: 5-10 years (Optional) |
Product Details :
