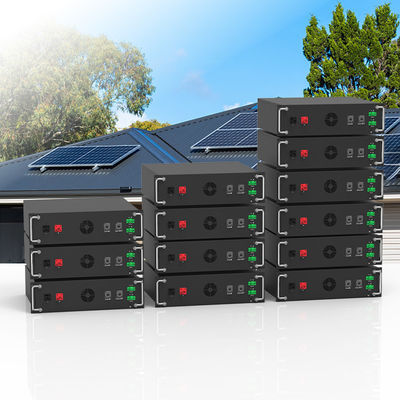

High voltage 15kwh-50kwh Lithium-ion battery pack smart BMS Lifepo4 51.2v 100Ah Rack Mounted Battery Lithium Ion Battery

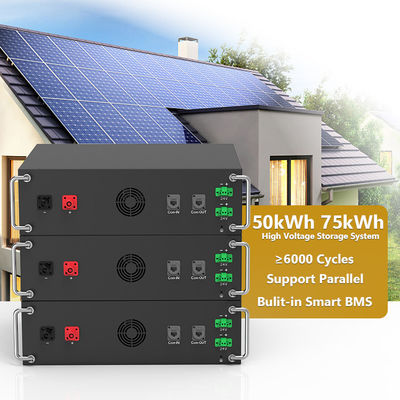

High Voltage 50kWh 75kWh Commercial Energy Storage Cabinet Description:
01. Small-scale commercial industrial energy storage
A Commercial and grid-tied/ off-grid energy storage system that supports peak shaving, self-consumption, gird-tied power sales, and other applications for hospitals, farms, hospitals, farms, schools, feeding farms, supermarkets, small and medium-sized factories, office buildings, and other scenarios.
02. Flexible expansion of 50kWh-75kWh
This module uses a 50-75kWh LifeP04 battery cluster, which can be flexibly expanded with an inverter to meet the electricity demand of 50-500kWh.
03. 24-hour technical support
Asgoft engineers provide round-the-clock technical support.
04. Complete certification
Certification standards: CE, IEC62619, ROHS, UN38.3, TUV, etc.
05. EVE Battery Cells
Adopting EVE high-quality A-grade LifePO4 batteries, the cycle life can reach over 5000 times at DOD80%.
06. Wide compatibility
Compatible with most available hybrid/off-grid inverters, such as DEYE, SMA, Ginlong, Goodwe, etc. More inverters can also be adapted according to customer requirements.
07. Smaller volume
The whole machine has a high energy density, with a 20% reduction in volume and a 15% reduction in weight compared to similar products. Quick-connect terminals are used between modules, making installation and transportation easy.
08. Intelligent BMS
Built-in intelligent BMS provides overcharge, over-discharge, and short-circuit protection, automatic insulation detection, pre-charging circuit, low-temperature charging protection, and low standby power consumption.
09. Protection system
Built-in accessible DC circuit breaker switch improves safety. Each battery module has intelligent air-cooling function and automatic fire-fighting system, with multiple safety protections.

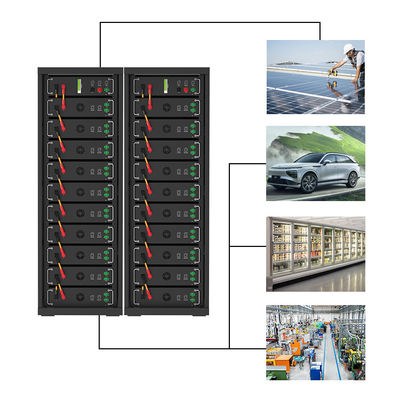

10. Expanded application scenarios
Commercial and grid-tied/off-grid storage system that supports peak shaving, self-consumption, grid-tied power sales, and other applications for hospitals, farms, schools, breeding farms, supermarkets, small and medium-sized factories, office buildings, and other scenarios.
Features :
Specifications:
| Nominal Voltage |
512V-530V |
| Rated Capacity | 100Ah |
| Stored energy | 50 kWh |
| Cycle life@100%DOD | 4000 times |
| Weight | 650 KG |
| Internal Resistance |
≤40 mΩ |
| Max. Charge Current | 50 A |
| Max. Discharge Current | 50 A |
| Charge Cut-off Voltage |
584V |
| Discharge Cut-Off Voltage | 400V |
| Dimensions |
600*600*1750mm |
| Operating Temperature Range | 20~60℃ |
| Charge |
0~55℃ |
| Discharge |
-20~60℃ |
|
Communication |
RS485,CAN |
| Life Expectancy (years) | 10-20 years |
|
Max. Efficiency |
97.60% |
|
Euro Efficiency |
97.00% |
|
MPPT Efficiency |
99.90% |
|
Grid Regulation |
VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1,G98, G99, C10-11, UNE217002, NBR16149/NBR16150 |
|
Safety EMC / Standard |
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
Product Details :
