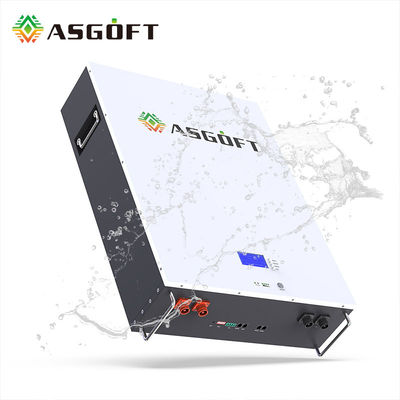

This is a Lithium ion 5kwh LiFePo4 Powerwall. With 48v 100Ah built in High quality grade A prismatic LFP cells 16S1P. This 5 kwh LiFePo4 powerwall included smart BMS and built in high quality BMS. A resistor is also built in on the BMS. Front LCD display shows all details information of battery state. This is a plug-n-play back up solar system 48v lifepo4 lithium pack 5kwh battery home powerwall.
Feature :
Specifications:
| Model | Power Wall 48V 100Ah/150Ah/200Ah | ||
| Voltage&Capacity | 48V 100Ah | 48V 150Ah | 48V 200Ah |
| Display | LCD | LCD | LCD |
| BMS | Built-in BMS | Built-in BMS | Built-in BMS |
| Cycles Life | 6000 | ||
| Warranty | 5Years | ||
| Communication | CAN/RS485 | ||
| Operation Temperature | Discharge: -20℃-55℃(pack internal temperature ) | ||
| Factory Voltage Range | 50V～53V | ||
| Charge Voltage | 58.4V | ||
| Charge Mode | 0.33C to 58.4V, then 58.4V,charge current to 0.02C (CC/CV) | ||
| Max Charge Current | 100A | 100A | 100A |
| Battery Pack Size | 580*400*160mm | customized | customized |
| Discharge Temperature | -20 ℃ to 55℃ (-4F to 131F) @60±25% Relative Humidity | ||
| Battery Pack Weight | 50KGS | 75KGS | 90KGS |
| Battery Rack Weight | 5KGS | 5KGS | 5KGS |
Product Details :
Applications:
