Feature :
Specifications:

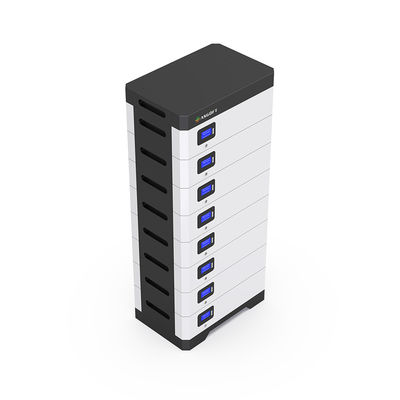

| Product Model | ASH-51800 |
| Product Power | 40Kwh |
| Nominal voltage | 51.2V |
| Nominal capacity | 800Ah |
| Cell type | LiFePO4 Battery ( Lithium iron Phosphate Battery ) |
| Standard charge voltage | 58.4V |
| Max charge current | 80A(Single Pack) |
| Discharge cut-off voltage | 40V |
| Max discharge current | 200A |
| Display | LCD |
| Communication interface | RS232 / RS485 / CAN |
| Cycle life | ≥6000 cycles |
| Charge temperature range | 0~55℃ |
| Discharge temperature range | -20°C to + 60°C |
| Dimensions | 680*450*1360mm |
| Weight (kg) | 390 |
| Certification | IEC 62109 , SAA , IEC 61683 , CETL UL1741&CSA C22.2 |
Product Details :
