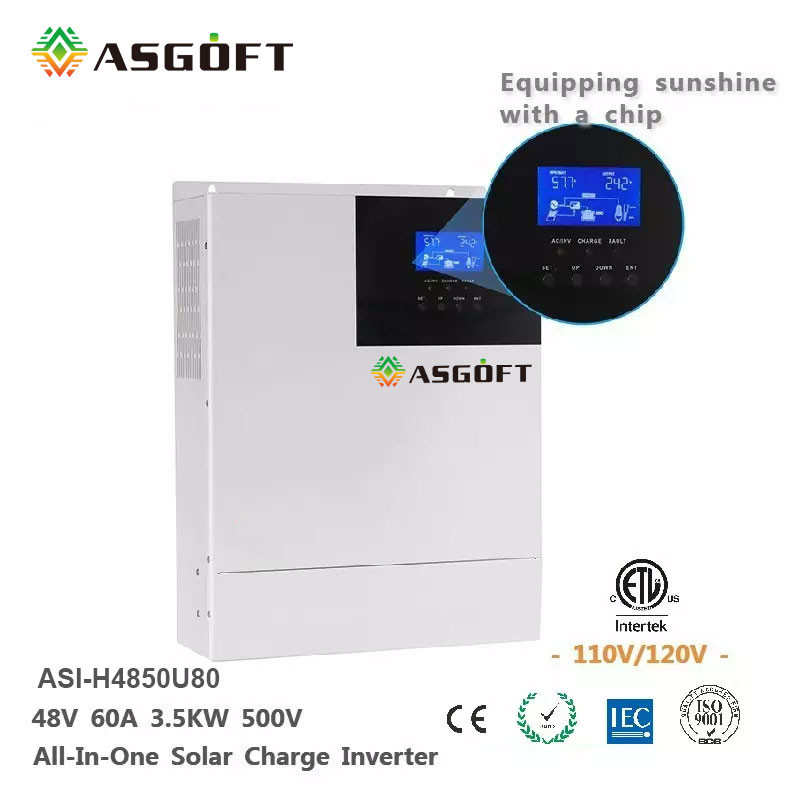

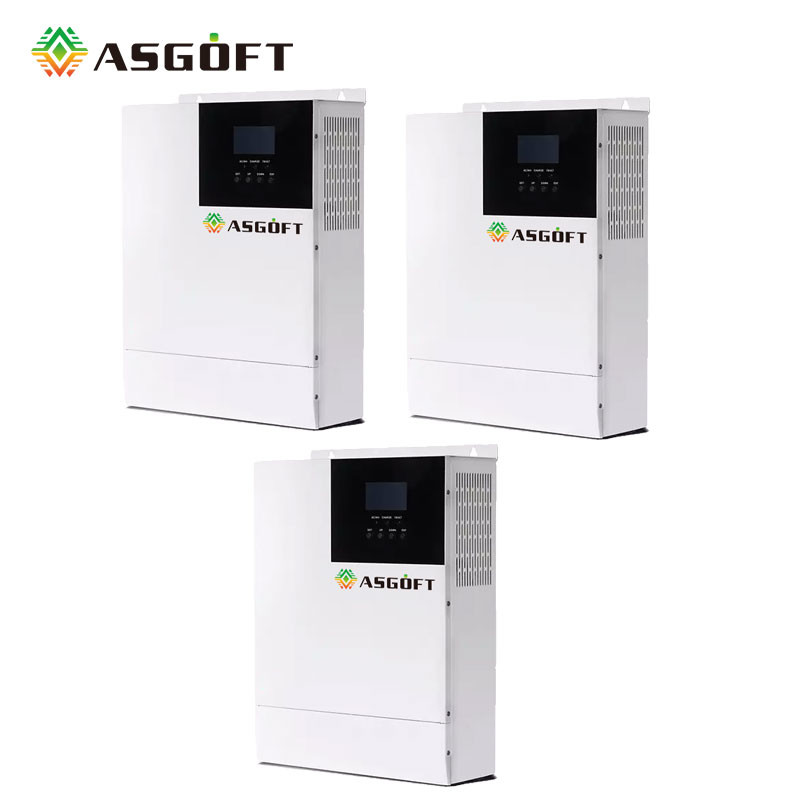

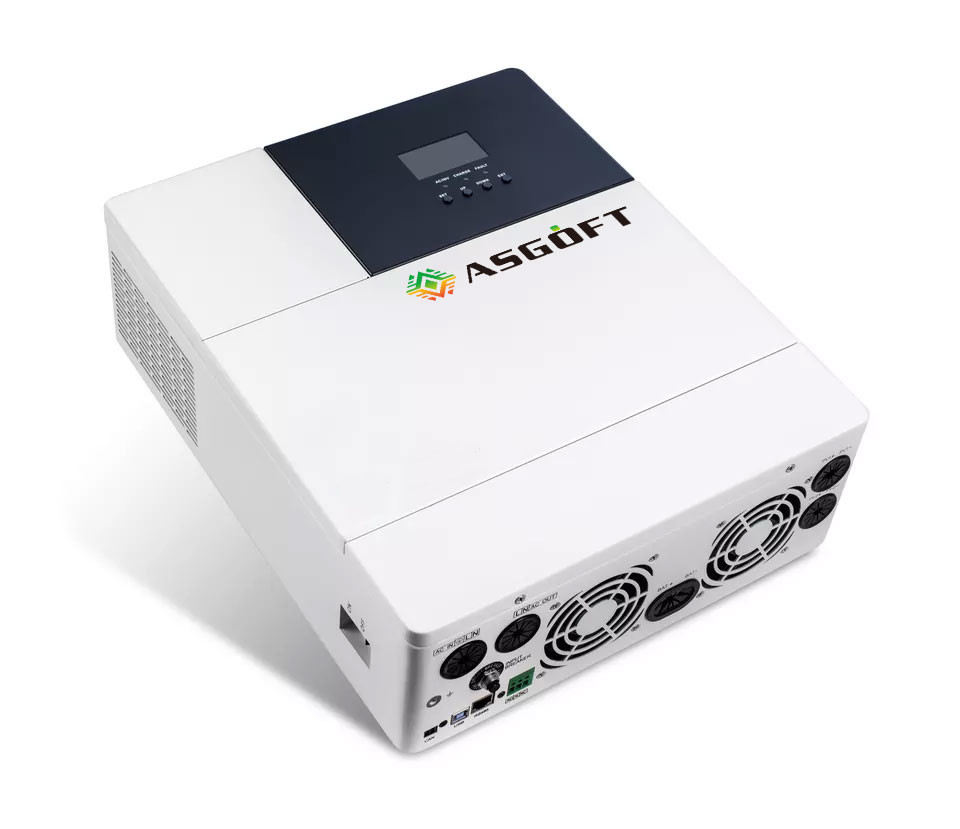

Factory price 5KW solar inverter mppt hybrid 48V 80A for off grid solar system
Description:
| Models | ASI -L4830U60-145 |
| AC Mode | |
| Rated Input Power | 3000W |
| Max.Peak Power | 6,000VA |
| Rated Input Voltage | 120Vac(K/N/PE single phase) |
| Load Capacity Of Motors | 2HP |
| Frequency | 50Hz/ 60Hz |
| Output Voltage Waveform | Pure Sine Wave |
| Parallel Capacity | NO |
| BATTERY | |
| Battery Type | Li-ion/Lead-acid /User defined |
| Rated Battery Voltage | 48Vdc |
| Voltage Range | 40-60Vdc |
| Max.MPPT Charge Current | 60A |
| Max.Mains/Generator Charging Current | 40A |
| Max.Hybrid Charging Current | 100A |
| PV INPUT | |
| Num.of MPPT Trackers | 1 |
| Max.PV Array Power | 3400W |
| Max.Input Current | 40A |
| Max.Voltage Of Open Cuurent | 145Vdc |
| MPPT Voltage Range | 60-115Vdc |
| MAINS/GENERATOR INPUT | |
| Input Voltage Range | 90-140Vac |
| Frequency Range | 50Hz/ 60Hz |
| Bypass Overload Current | 40A |
| EFFICIENCY | |
| MPPT Tracking Efficiency | 99.90% |
| Max.Battery Inverter Efficiency | 92% |
| Dimensions | 378*280*103(1.2*0.9*0.3ft) |
| Weight | 6.2kg(13.6lb) |
| Protection Degree | IP20,Indoor Only |
| Operating Temperature Range | -15°C-55°C (5°F-55°F) |
| Noise | <60dB |
| Cooling Method | Internal Fan |
| Warranty | 1 Year |
| COMMUNICATION | |

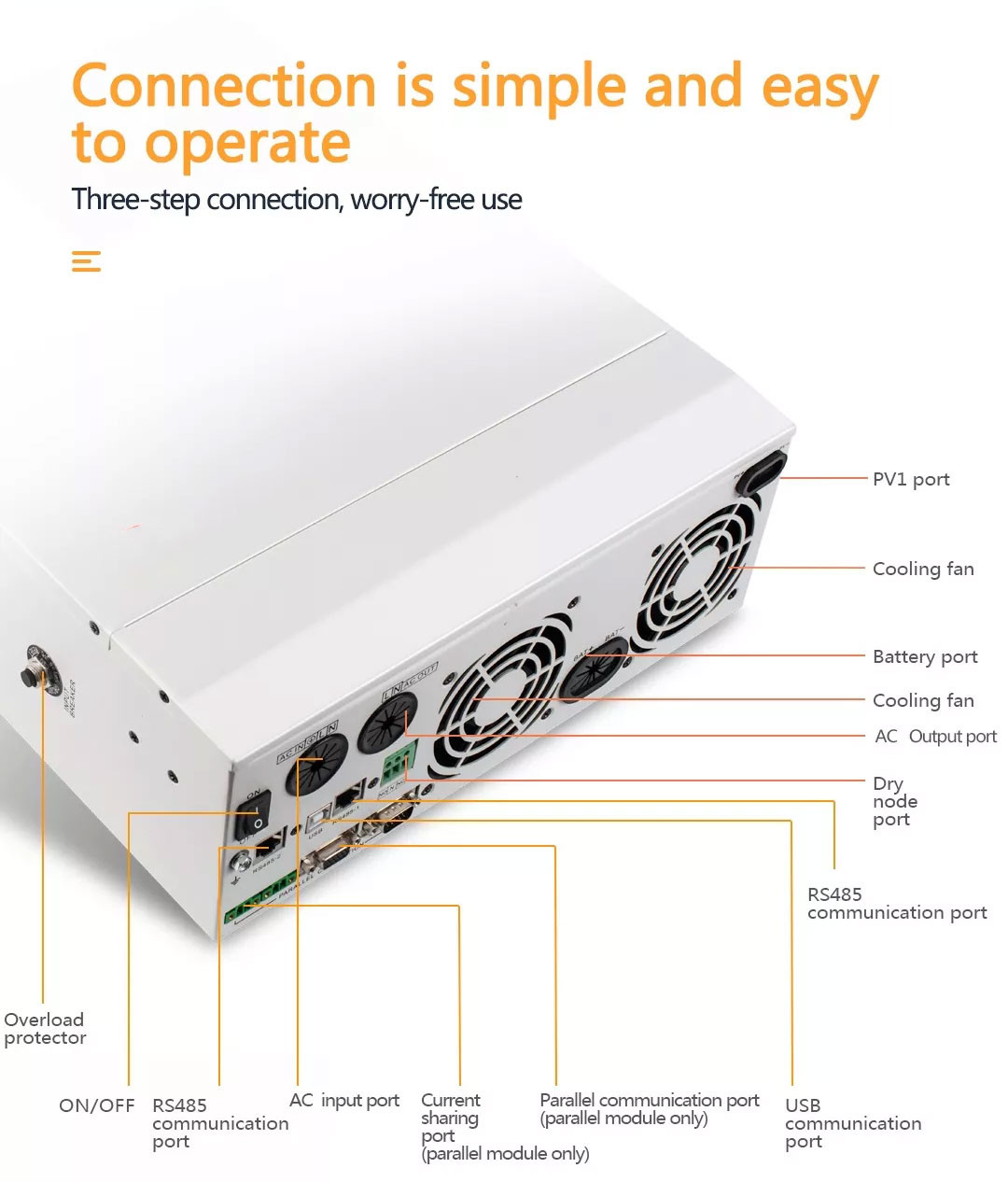

| Communication Interfaces | USB/RS485/Dry node control |
| External Modules(Optional) | WiFi/GPRS |
| CERTIFICATION | |
| Safety | IEC 62109,SAA,cETL,UL1741&CSA C22.2 |
| EMC | EN61000,FCC Part15 ClassB |
| RoHS | Yes |
Product Details :
