Guangdong Wholesale 500W 182*182mm Solar Photovoltaic Panel With 132pcs Solar Cell
Description:
Specifications:
| Electrical Parameters at STC | |
| Module Type | ASS450P |
| Rate Maximum Power | 450 |
| Module Efficiency(%) | 20.8 |
| Open Circuite Volatage(Voc/v) | 41.25 |
| Short Circuit Current (Isc/A) | 13.89 |
| Voltage at Pmax (Vmp/V) | 34.67 |
| Current at Pmax (Imp/A) | 12.98 |
| Power Tolerance | 0~+5w |
| Temperature Coefficent of Isc | +0.046% °C |
| Temperature Coefficent of Voc | -0.276% °C |
| Temperature Coefficent of Pmax | -0.356% °C |
| STC | Irradiance 1000W/㎡ Cell Temperature 25°C AM 1.5 |
| Remark : Electrical data in this catalogue does not refer to a single module ,and it is not part of the offer . | |
| Solar Cell(Type/Size) | MONO(182mm) |
| Solar Cells Number | 120pcs (6*10) |

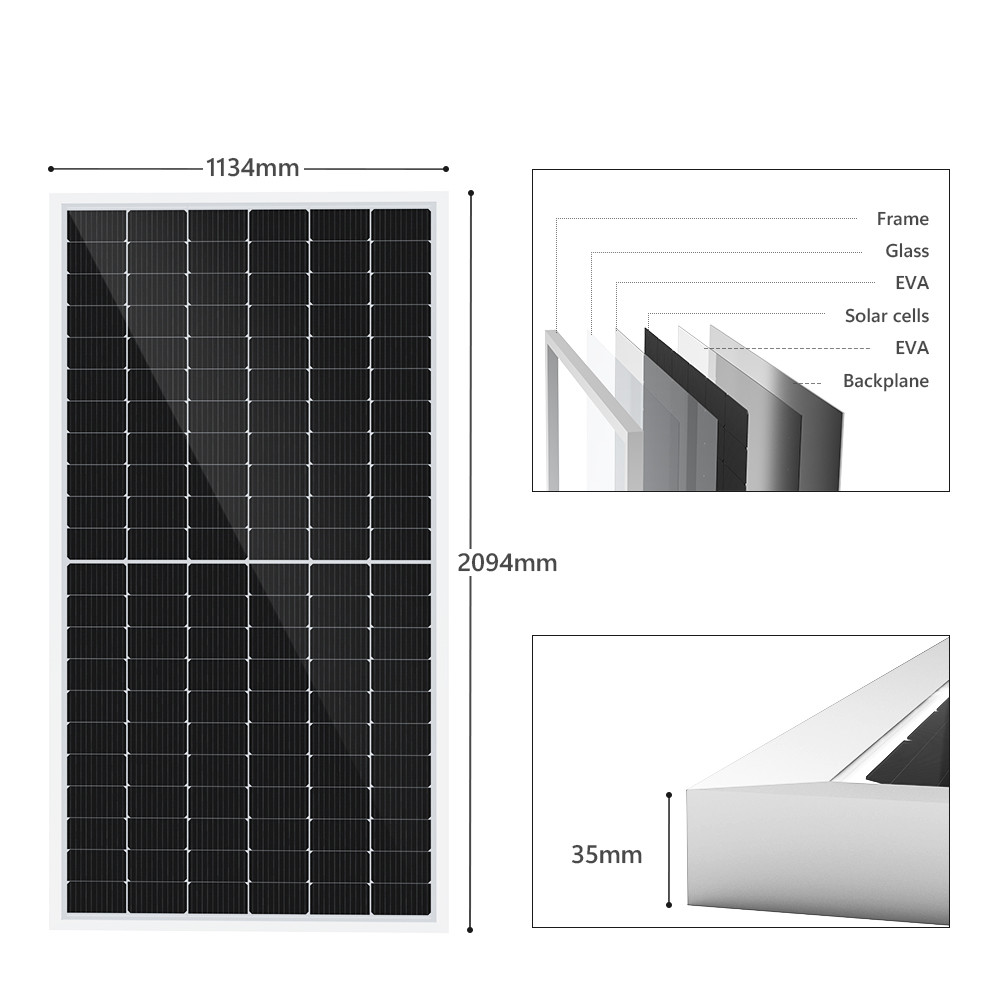

| Dimensions | 1909*1134*35mm |
| Weight | 23.9kg/pcs |
| Structure | 3.2Glass+EVA film+Back |
| Fram | Anodized Aluminum Alloy |
| Junction Box | IP68☒3*Bypass Diode |
| Cable Cross Section Size | 4.0m㎡,(+)300mm/(-)400mm |
| Mechanical Load | Front 5400Pa/Black 2400Pa |
| Packing Number | 31pcs/pallet |
| Packing Volume | 2.84cbm/pallet |
| 40'HQ Container | 744pcs |
Product Details :
