Mppt Solar Power Inverter 3.5KW 5.5KW 24V Dc To 220V Ac Solar 12V Off Grid Tie Mppt Pure Sine Wave Hybrid Solar Inverter
Description:
The grid-connected inverter sends energy directly to the grid, so the frequency and phase of the grid should be tracked, which is equivalent to a current source. Of course, some inverters now have the ability of low voltage traversal and can do PQ regulation.
Off-grid inverter is equivalent to establishing an independent small power grid, mainly controlling its own voltage, which is a voltage source.
The grid-connected inverter does not need to store energy, but the energy cannot be regulated. The amount of photovoltaic power generated will be sent to the network, regardless of whether others want it or not. The power grid doesn't like it very much.
Off-network generally requires energy storage and does not send energy to the network. The power grid has no right to interfere.

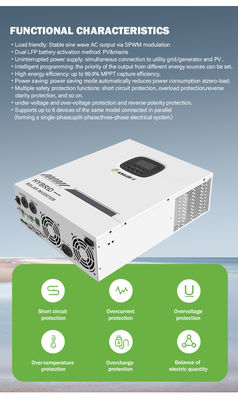

Features :
Parameter:
| Model | HSI 5500P | Adjustable | |
| Battery Input | |||
| Battery type Rated Battery Input Voltage Hybrid Charging Maximum Charging Current |
Sealed,FLood,GEL,LFP,Ternary 48V ( Minimum Startup Voltage 44V) 100A |
√ √ |
|
| Battery Voltage Range Solar Input Maximum PV Open-circuit Voltage PV Working Voltage Range MPPT Voltage Range Maximum PV Input Current Maximum PV Input Power |
40Vdc~60Vdc ± 0.6Vdc(Undervoltage Warning/Shutdown Voltage/ Overvoltage Warning/Overvoltage Recovery...) 500Vdc 120-500Vdc 120-450Vdc 22A 6000W |
√√ | |
| Maximum PV Charging Current AC Input(generator/grid) Mains Maximum Charging Current Rated Input Voltage Input Voltage Range |
100A 60A 220/230Vac UPS Mains Mode:(170Vac~280Vac)土2% APL Generator Mode:(90Vac~280Vac)±2% |
√√ √√ √√ |
|
| Frequency | 50Hz/ 60Hz (Automatic Detection) | ||
| Mains Charging Efficiency | >95% | ||
| Switch Time (bypass and inverter) | 10ms(Typical Value) | ||
| Maximum Bypass Overload Current AC Output |
40A | ||
| Output Voltage Waveform Rated Output Voltage (Vac) |
Pure Sine Wave 230Vac |
√√ | |
| Rated Output Power (VA) | 5500 | ||
| Rated Output Power(W) | 5500 | ||
| Peak Power | 11000VA | ||
| On-load Motor Capacity Output Frequency Range(Hz) |
4HP 50Hz±0.3Hz/60Hz±0.3Hz |
√√ | |
| Maximum Efficiency | >92% | ||
| No-load Loss | Non Energy-saving Mode: ≤50W Energy-saving Mode:≤25W (Manual Setup) | ||
| General | |||
| ⑬ | ⑭ ⑮ | Number of parallel/split phases | 1-6PCS |
| Certificate | CE(IEC62109-1)/CETL(UL 1741 C22.2 NO.107.1)/FCC/SAA | ||
| EMC Certification Level | EN61000, C2 | ||
| Working Temperature Range | -10°C ~ 55°C | ||
| Storage Temperature Range Humidity Range Dimensions Weight (KG) |
-25°C ~ 60°C 5% to 95%(Conformal Coating Protection) 426mm*322mm*124mm426mm*322mm*124mm 10.5 |

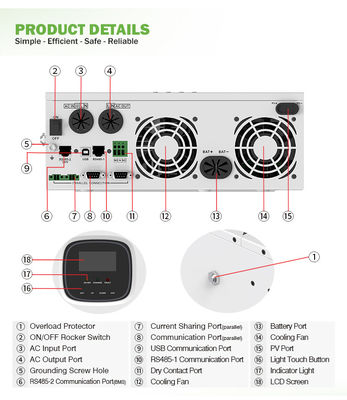

Product Details :
